Specifications and Features
|
| Model |
HW-8SXLT |
HW-8S |
| Manual |
HW-8SXLT Manual |
HW-8S Manual |
| Warranty |
3 Years (36 Months) |
3 Years (36 Months) |
| Lifting Capacity |
8,000 LB |
8,000 LB |

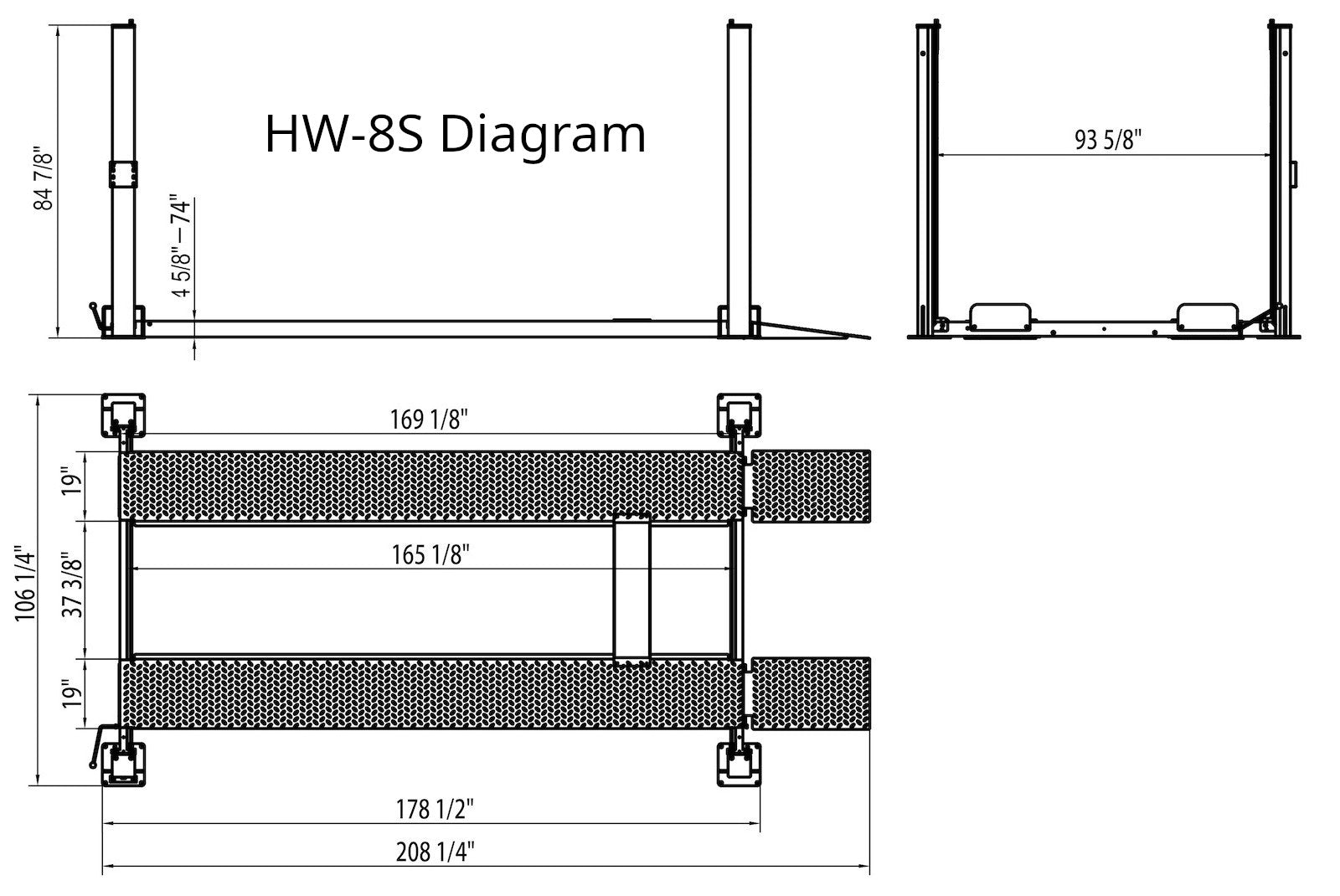

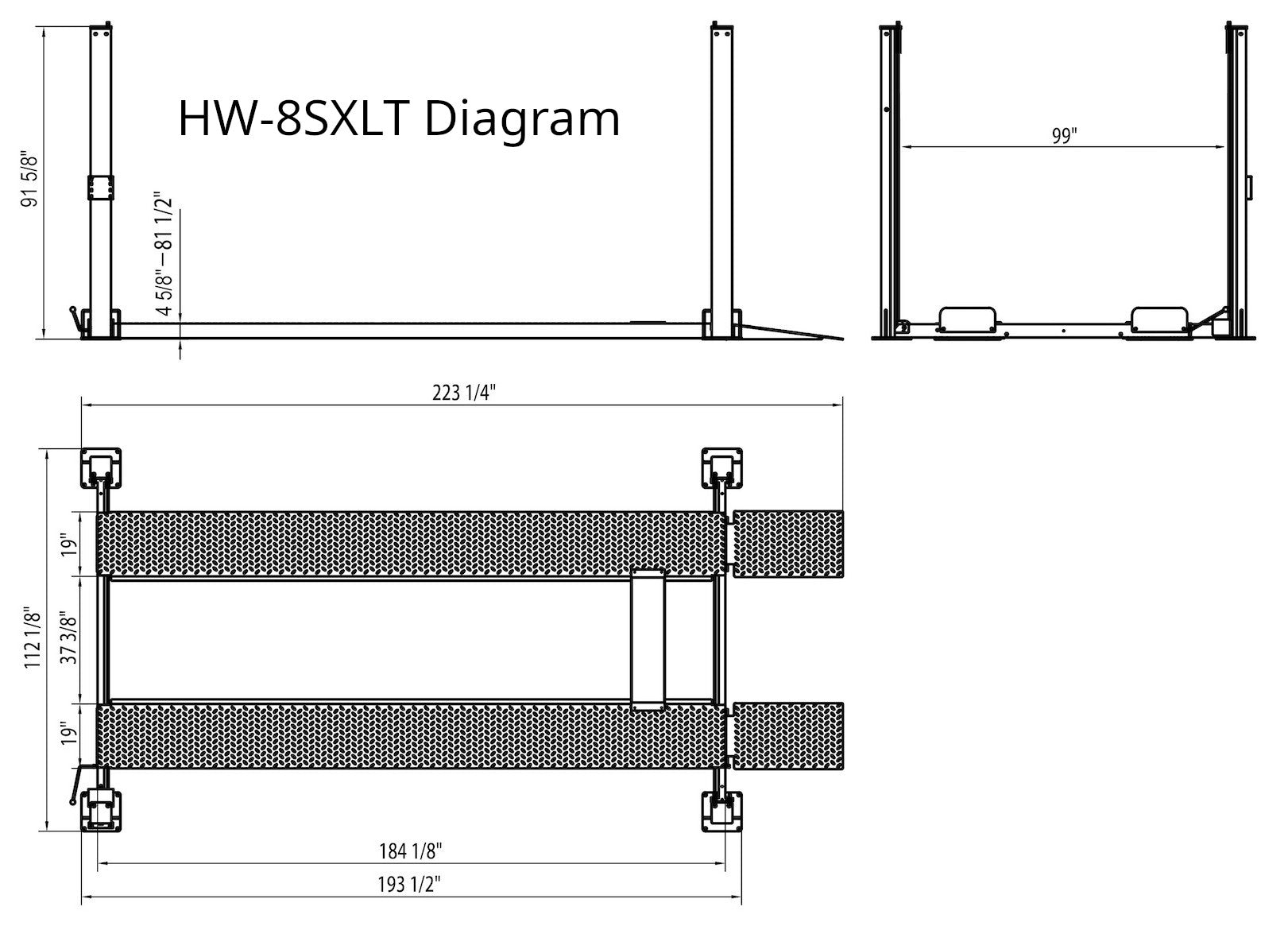

| Overall Length |
193" |
178" |
| Overall Width |
112" |
106" |
| Drive Through Width |
99" |
93" |
| Overall Height |
91" |
84" |
| Lifting Height |
82" |
72" |
| Clearance Under Runway |
77" |
66" |
| Runway Size |
180"L x 18 1/2"W |
165"L x 18 1/2"W |
| Width Between Runways |
38" Inside-Inside, 75" Outside-Outside |
38" Inside-Inside, 75" Outside-Outside |
| Runway Gauge Steel |
6 (13/64") |
6 (13/64") |
| Column Cross Section |
6"L x 4"W |
6"L x 4"W |

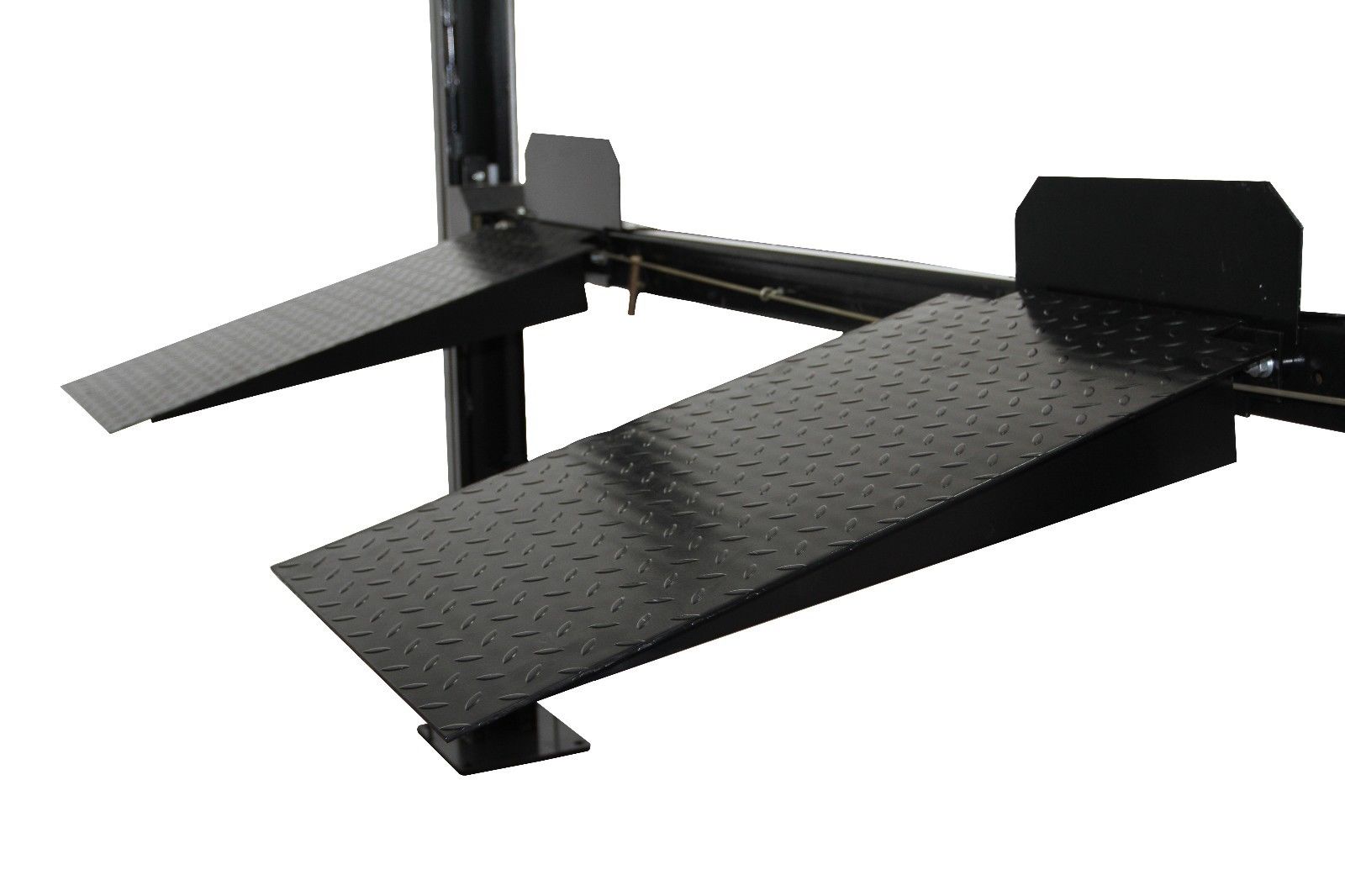

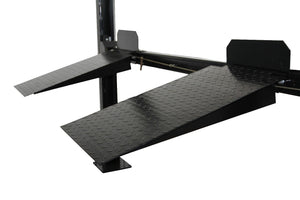

| Removable Approach Ramps Size |
32"L x 18 1/2"W |
32"L x 18 1/2"W |
| Lock Positions |
12 Positions
- 28 3/4"
- 42 1/2"
- 46 1/2"
- 50 3/8"
- 54 3/8"
- 58 1/4"
- 62 1/4"
- 66 1/8"
- 70 1/8"
- 74"
- 77"
- 81 7/8"
|
9 Positions
- 28 3/4"
- 42 1/2"
- 46 1/2"
- 50 3/8"
- 54 3/8"
- 58 1/4"
- 62 1/4"
- 66 1/8"
- 70 1/8"
|
| Lifting Time |
40 seconds |
40 seconds |
| Motor |
110V Single Phase 1.5HP 10A (recommend a 30A breaker) |
110V Single Phase 1.5HP 10A (recommend a 30A breaker) |
| Powercord |
10 ft with plug |
10 ft with plug |
| Hydraulic Oil |
3-5 gallons AW32/AW46 (Not Included) |
3-5 gallons AW32/AW46 (Not Included) |
| Concrete Thickness |
4" |
4" |
| Shipping Weight |
1,850 LB |
1,750 LB |

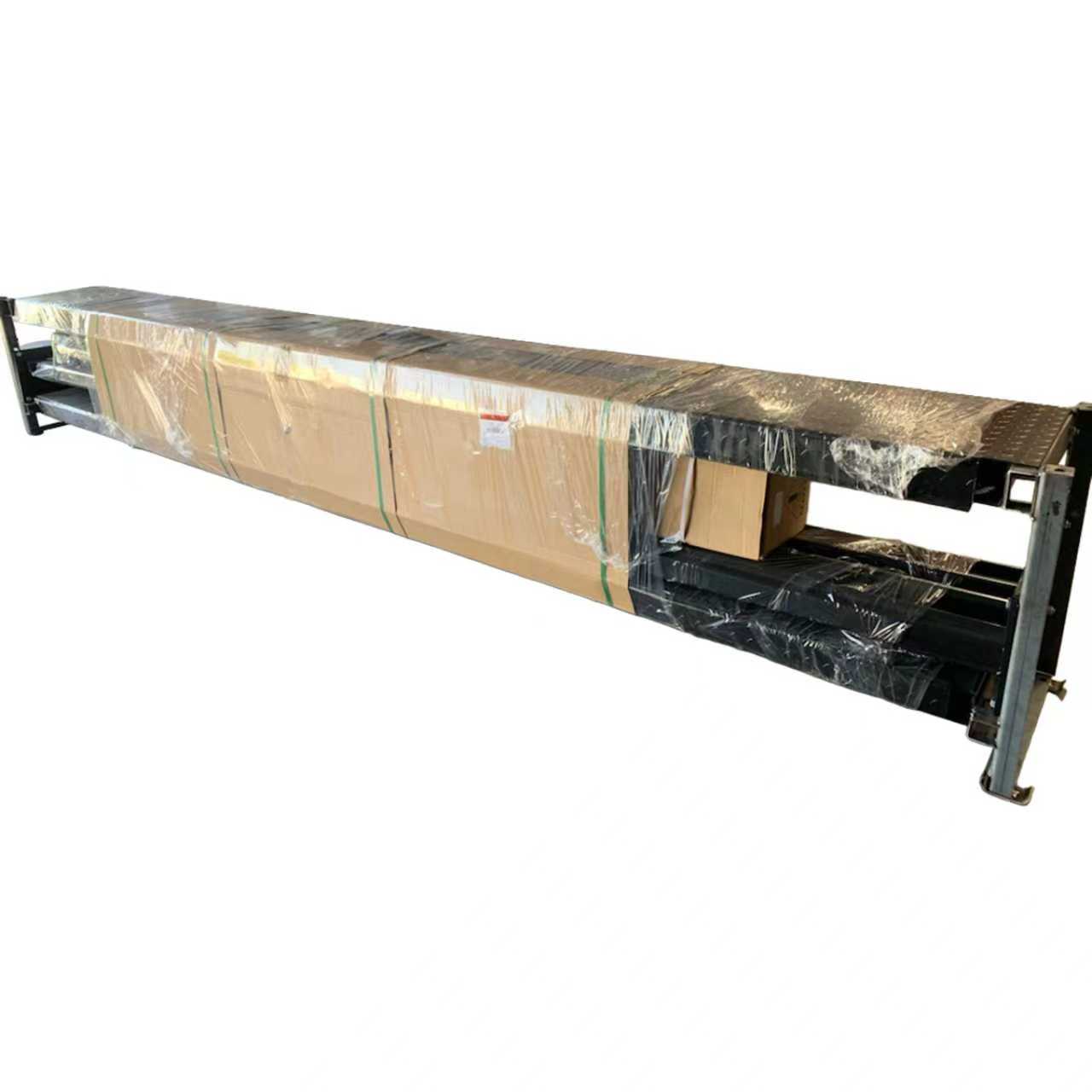

| Shipping package size |
186"L x 22"W x 30"H |
166"L x 22"W x 30"H |

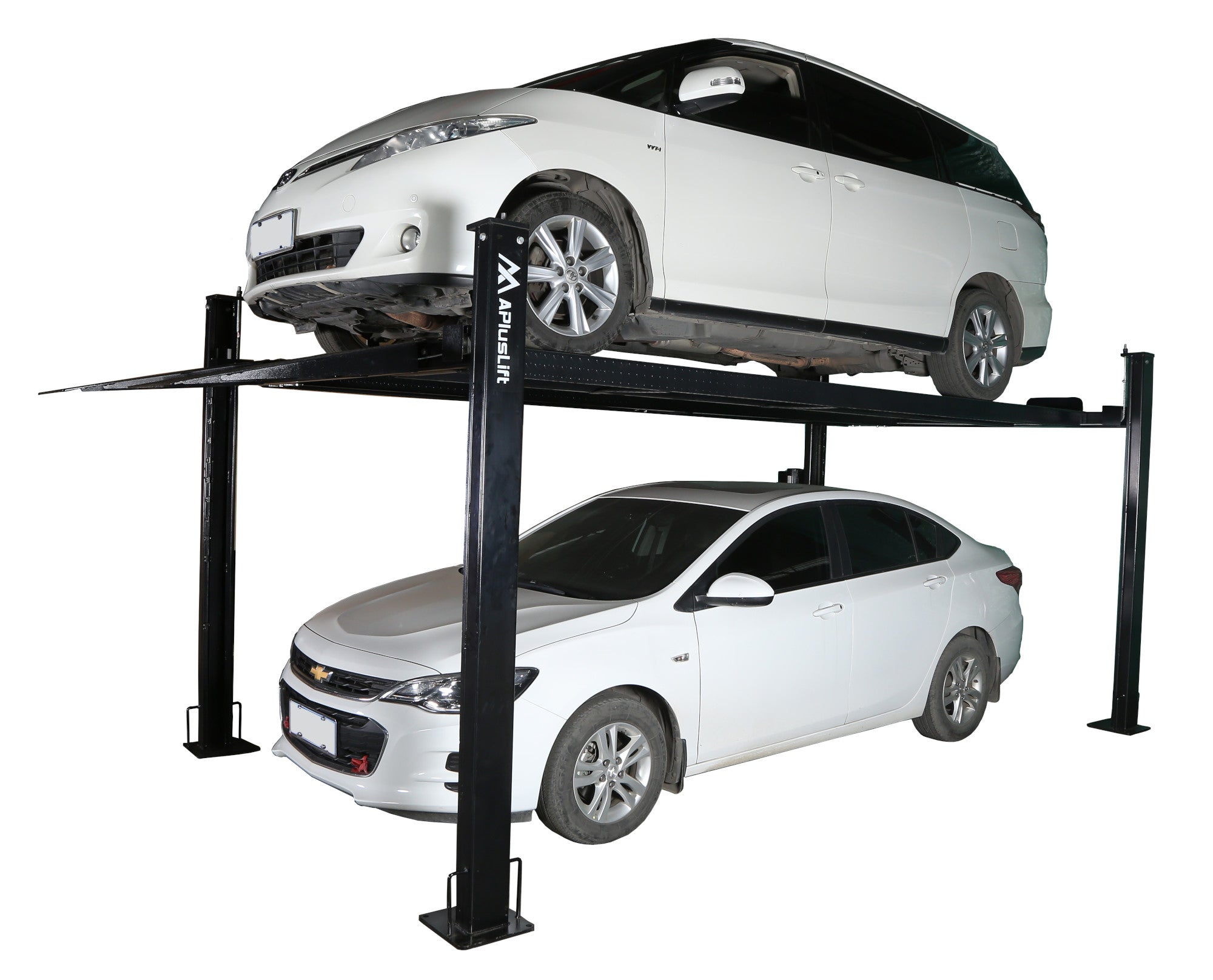

| Usage |
Parking/Storage/Service |
| Finish |
Powder Coated Finish with Superior Corrosion Resistance |

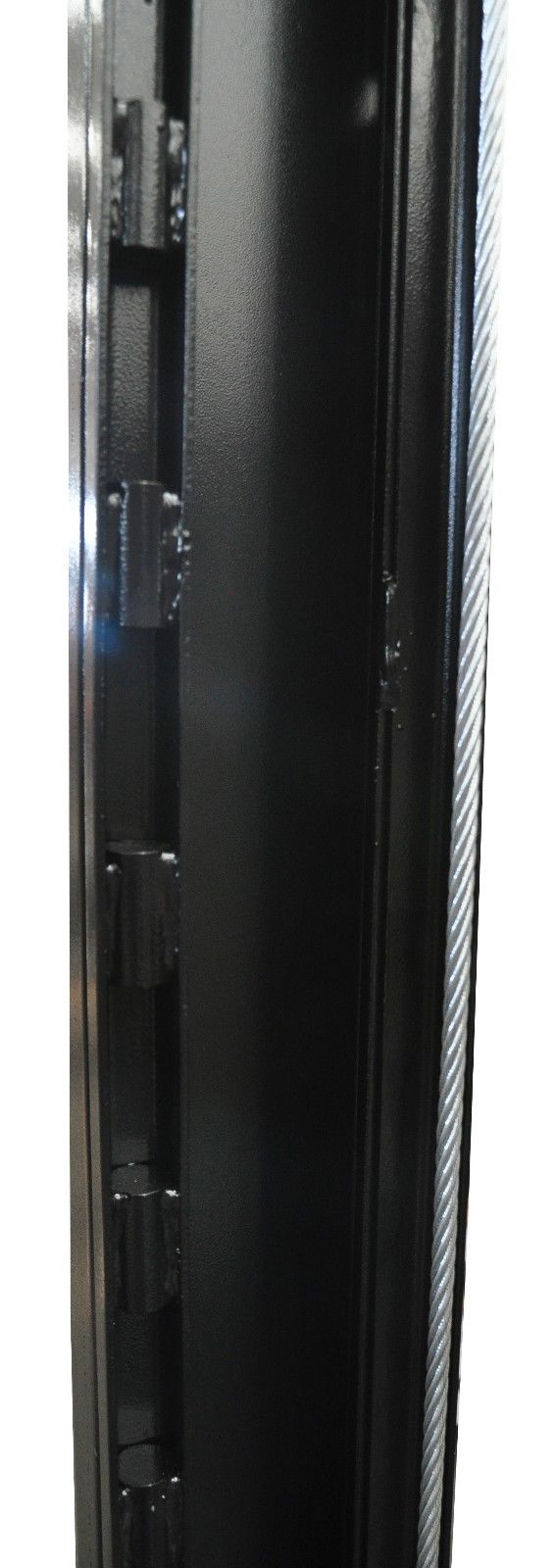

| Cable |
Heavy duty 3/8" diameter cables that reduce high stress on synchronization process and increase cable life |

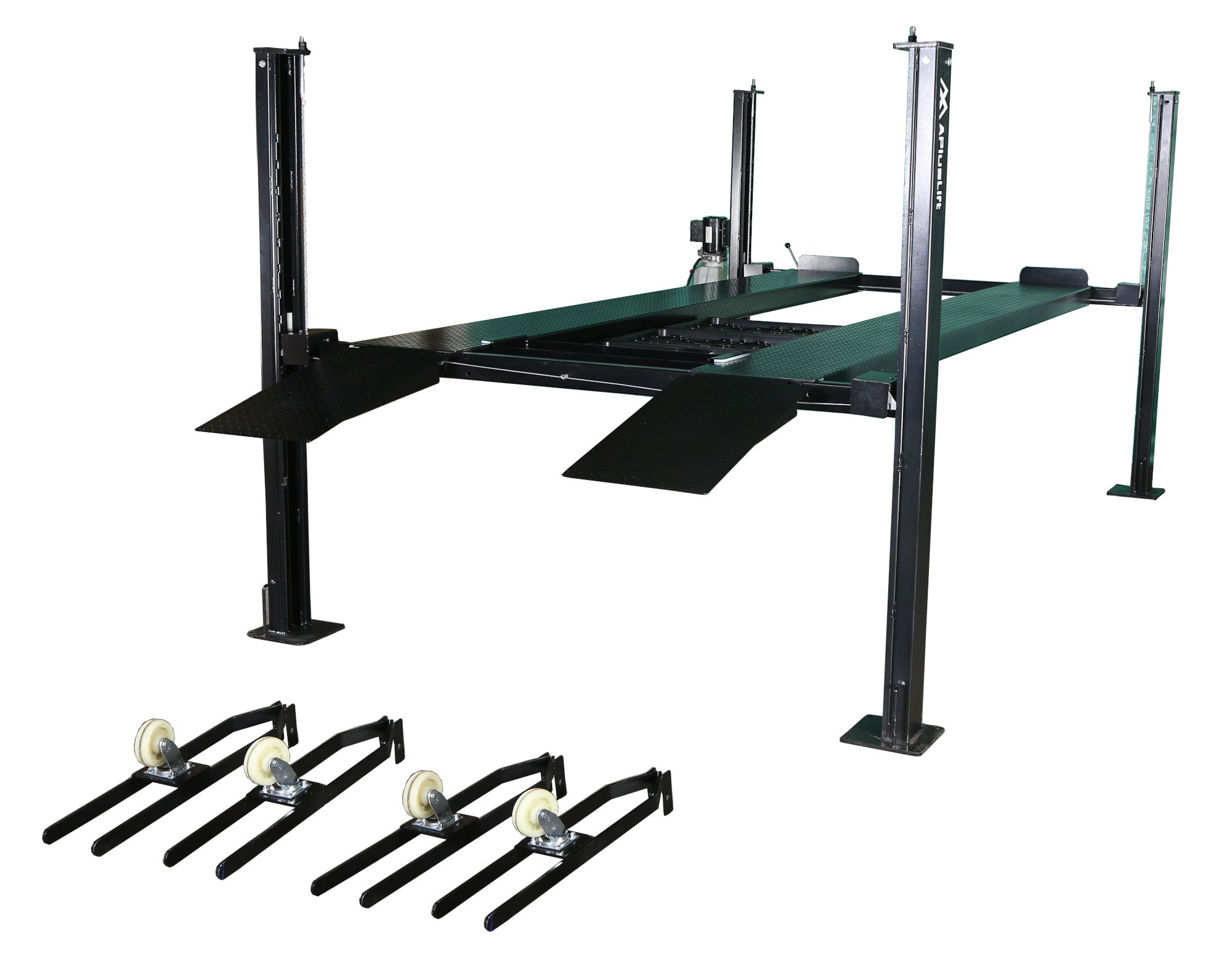

| Parts Included |

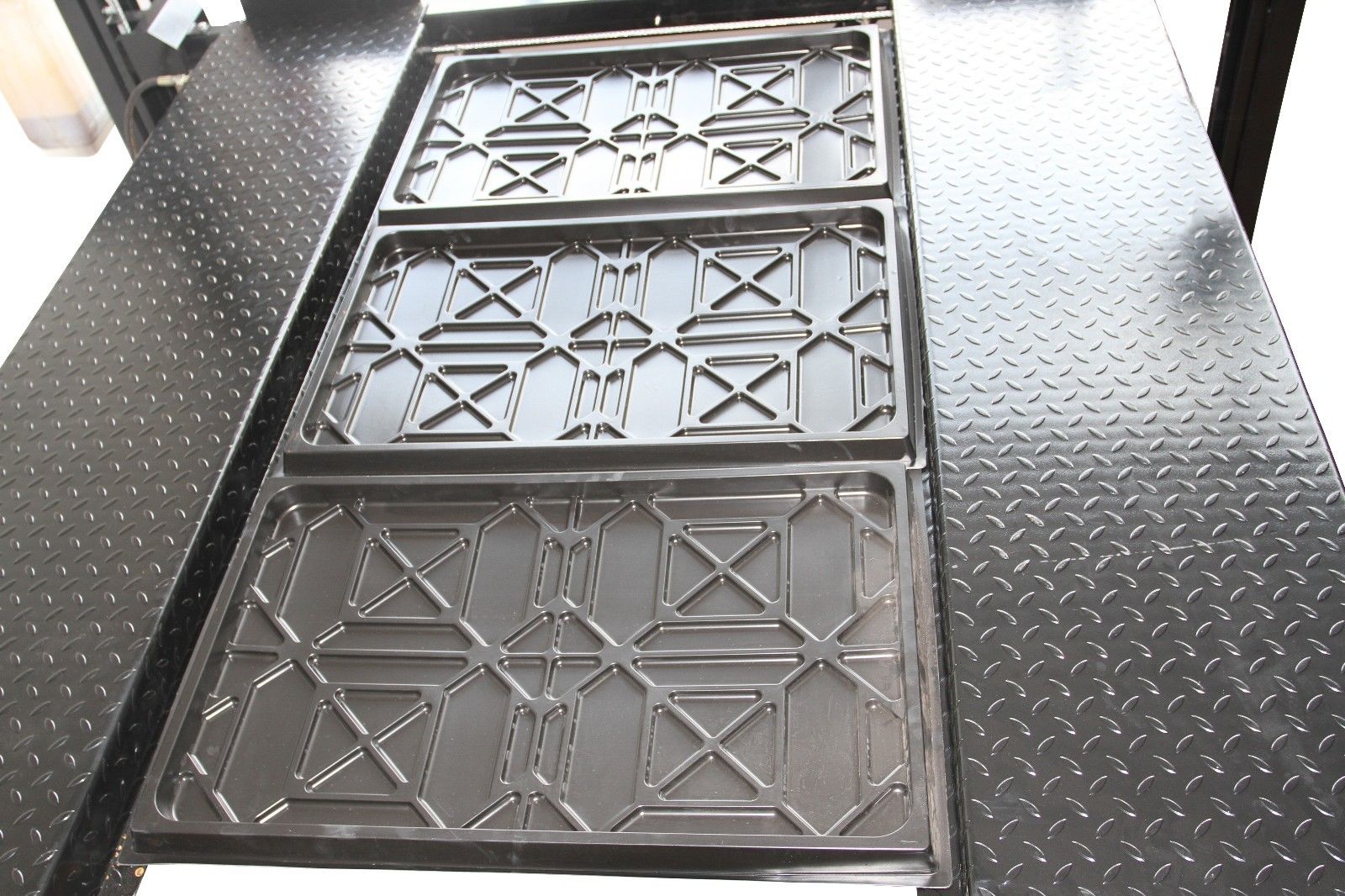

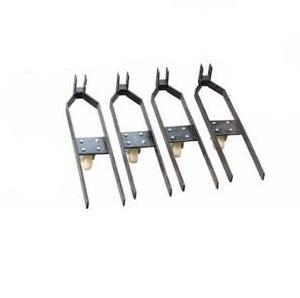

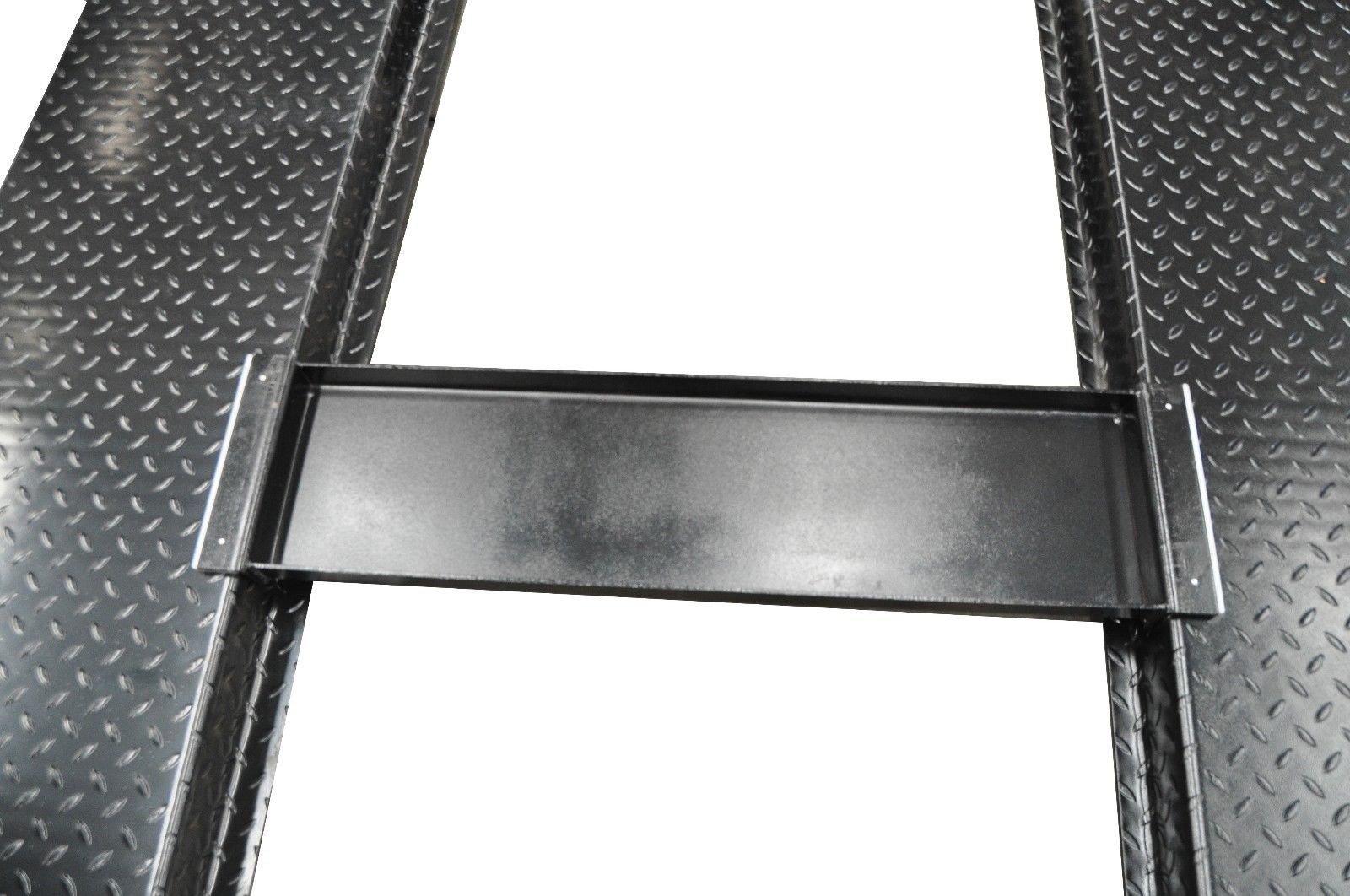

Caster Kit, Jack Tray, 3 Drip Trays, And 2 Removable Approach Ramps Included |
| Optional Jack |
ABJ-40 Air Operated Bridge Jack |
