Challenger Lifts 44060E 60000 lbs Heavy-Duty 4 Post Chain Driven Lift

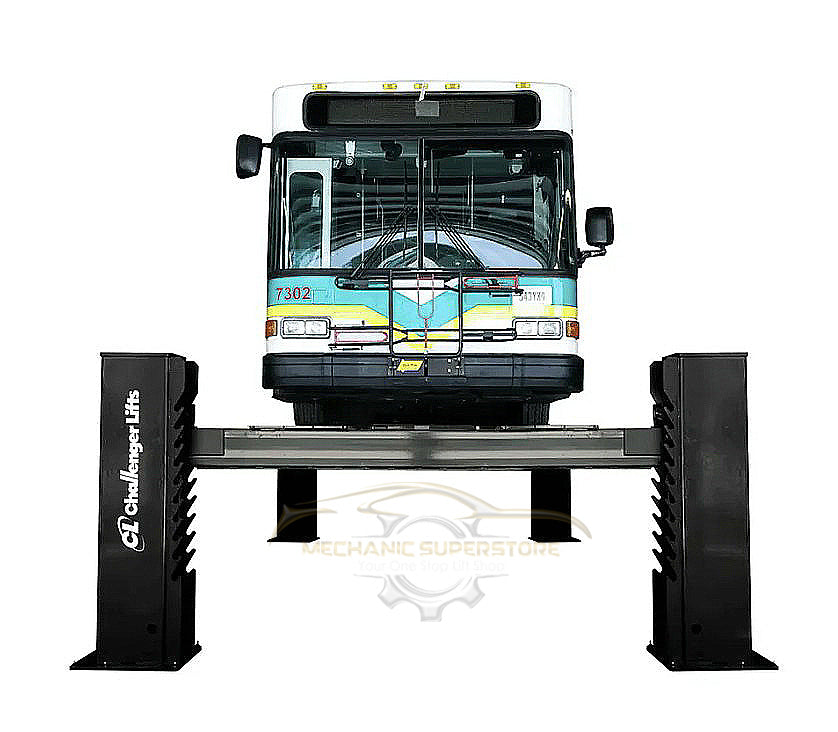

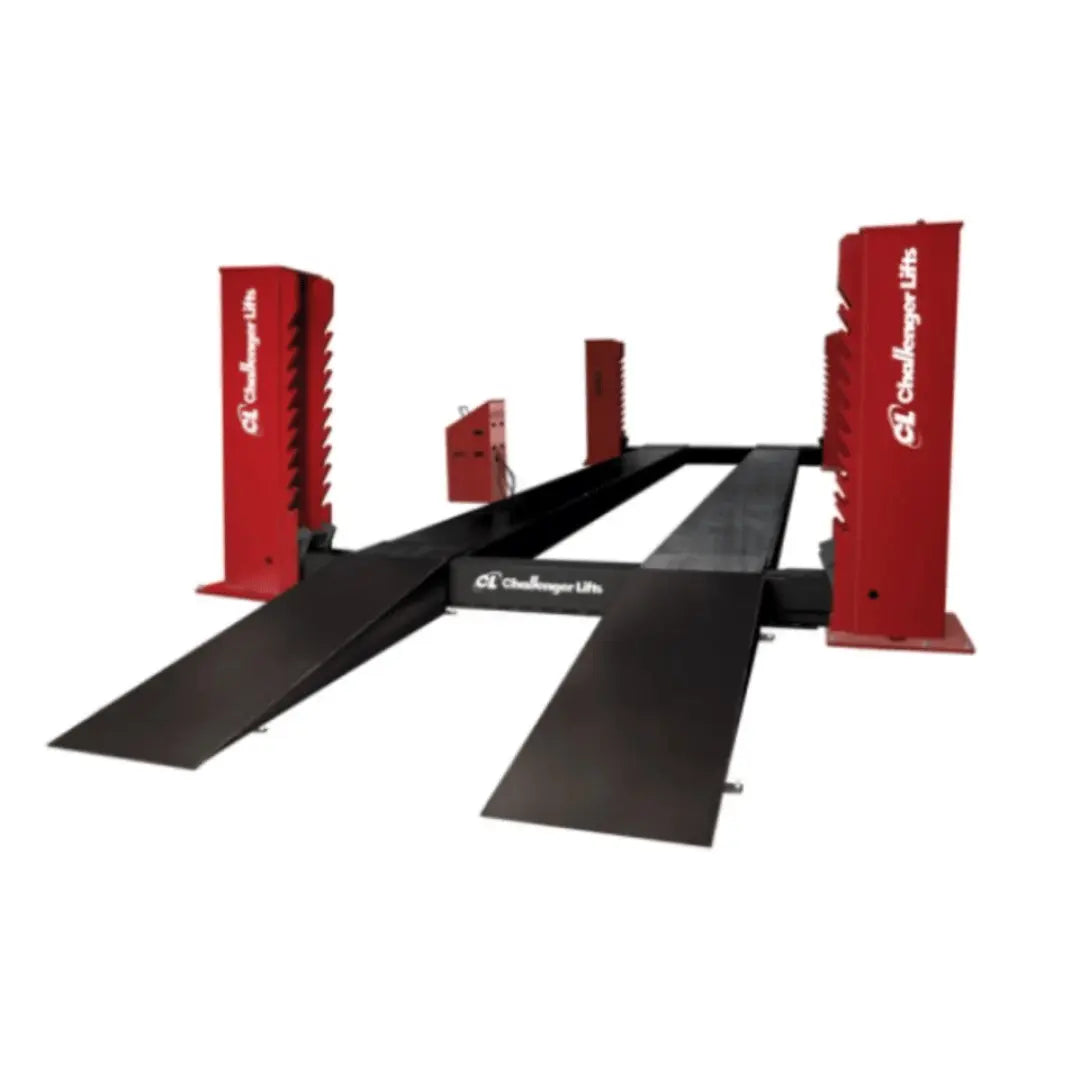

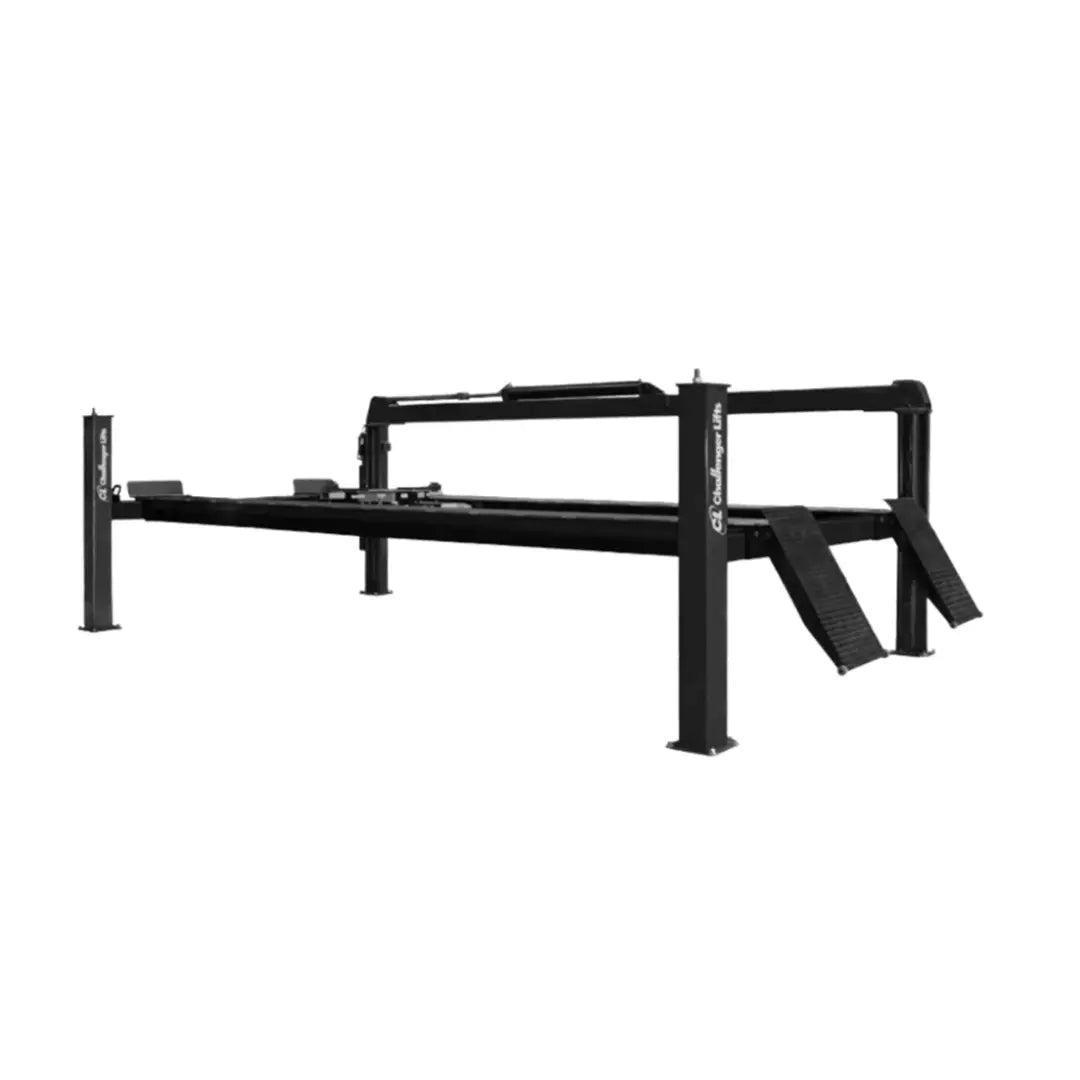

Our 30,000 lb to 60,000 lb lifts offer an economical solution for high-capacity lifting in a classic 4-post format. The diamond-plated, anti-skid runways and ramps ensure excellent traction for vehicles. Featuring a synchro-power system with dual heavy-duty lift cylinders and lever controls, these lifts deliver both variable and synchronized power to the front and rear suspension. This design is ideal for supporting large-axle vehicles with heavier front or rear ends, such as waste trucks and construction vehicles.

Product Features

30,000 lb. to 60,000 lb. capacity 4-post
310” to 430” max wheelbase
32” wide runways aid for drive-on confidence
10 lock positions provide maximum head room for working underneath vehicles (40K-60K)
Single-point air actuated lock release allows technicians to disengage column locks simultaneously
Diamond-plate approach ramps for positive vehicle traction
Optional 15,000 lb. – 35,000 lb. rolling jacks provide complete optimization for your heavy-duty servicing needs
Available with black columns only

Product Specifications

Model	44060E
Lifting Capacity	50,000 lbs.
Max. Wheelbase	370”
Rise Height	73”
Overall Length	41'
Overall Width	17’ 1.25”
Inside Columns	144”
Between Columns	350”
Height Overall	92"
Height of Runways	14”
Width of Runways	32”
Width Between Runways	36” - 58”
Width Between Runways with jacks	43" - 53.5"
Motor / Voltage	15HP, 230 - 460v Three Phase
Amps	42 - 21
Speed of Rise	70s
Color Available	Black
